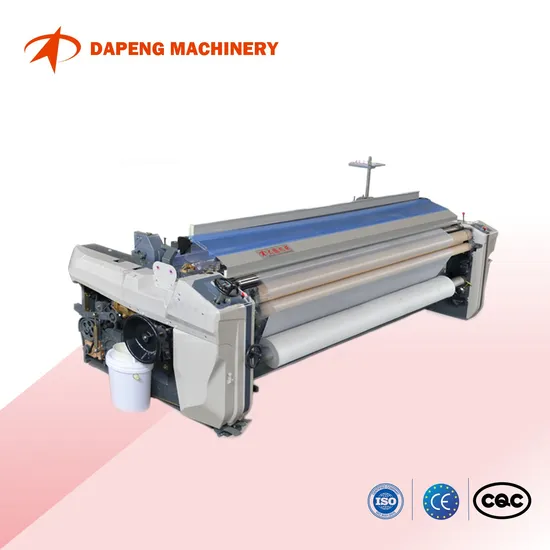

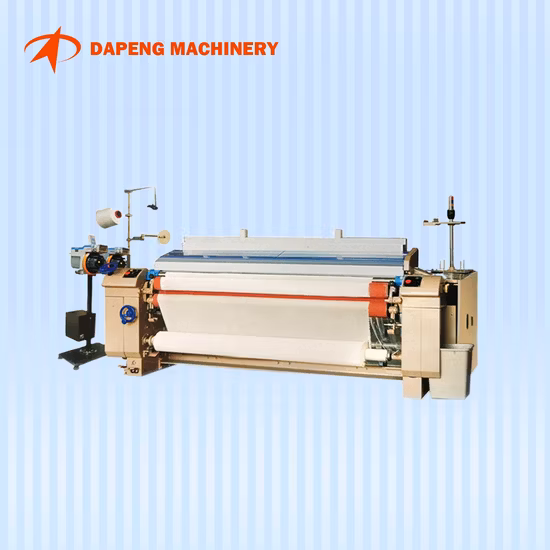

Heavy Duty Weaving Machine
Company OverviewFounded in 1980, Spark Yinchun Textile Machinery is a professional manufacturer of shuttleless looms in
Description
Basic Info.
Model NO. | YC9000 |
Customized | Customized |
Condition | New |
Shedding | Crank, Cam, Dobby or Jacquard Shedding |
Nozzles&Reed | Energy Saving |
Elo+Etu | Panasonic |
Running Speed | 450-1300rpm |
Motor Power | 1.8-5.5kw |
Reed Width | 170, 190, 210, 230, 260, 280, 340, 360cm |
Transport Package | Standard Export Packing |
Trademark | SPARK |
Origin | China |
HS Code | 8446305000 |
Production Capacity | 300sets/Month |
Product Description
Company OverviewFounded in 1980, Spark Yinchun Textile Machinery is a professional manufacturer of shuttleless looms in Chinaintegrating R&D, manufacturing, sales, international trade and services. The main productsinclude "Spark" brand JW series water jet looms and YC series air jet looms. After the appraisal byChina Textile Machinery Association, the technical level of water jet looms and air jet looms produced by SPARKMachinery has reached the international advanced level, and the market share has been leading stationfor many years. The company adheres to the corporate mission of providing customers with competitiveweaving solutions and services, and continues to create value for customers.With the responsibility of revitalizing national brands, it will surely become a world famous brand inthe Chinese loom industry.Machine ModelWater Jet LoomJW817; JW822 ; JW851; JW408; JW608; JW8200 Air Jet LoomYC600;YC700;YC800;YC9000;YC910;YC920
Machine Specification
Air jet loom technical parameters | ||
Item | air jet loom configuration | Remark |
Nominal reed space | ◊150,◊170,◊190,◊210,◊230, ◊280,◊320,◊340,◊360 cm | Useful reed width:Below 280cm cut 0-60cm Above 280cm cut 0- 80cm |
Drive | Motor choose by reed. Shedding type | |
Weft selection | ( )set weft storage,( )main nozzle, any weft | ◊2 color;◊4 color; ◊6 color |
Weft insertion | Electronic control mail, auxiliary nozzle relay weft, with auxiliary main nozzle, SMC solenoid valve from Japan | |
Beating | More support feet beating solid shaft, With weight, Crank linkage beating | above 280cm six-bar linkage, below 280cm four-bar beating |
Let off | Electronically controlled continuous positive let-off, suitable for ◊φ800 beam ◊φ1000mm beam | |
Take up | ◊electronic take up ; ◊Mechanical take-up | ◊sand roller; ◊double pressure roller; ◊rubber roller;◊barbed leather roller |
Winding | ◊inside the machine winding ◊outside the machine winding | ◊inside the machine winding maximum roll diameter 550mm ◊outside the machine winding maximum roll diameter 1200mm |
shedding | ◊positive cam shedding(up to 8)shaft ◊crank shedding (4)shaft ◊electronic dobby shedding(up to 16)shaft | Cam box and dobby manufacture: ◊Bintian ◊Staubli ◊Niupai |
Shedding cams | ◊1/1 ;◊ 2/1 ; ◊3/1 ; ◊2/2 ;◊4/1 shaft | |
Heald frame | Number of New Light heald frames | |
Heald wires | Heald wires ◊J type 331 ; ◊ O type 330 | |
cutter | Mechanical shears | |
Selvage | Planetary gear cutter edge institution | |
temple | 30 hoops temple in the cloth above | |
Back beam | Double back beam, positive loose warp | |
Control box | ◊7" ◊10.4" touch screen ; computer control system ; process parameters, monitoring, self-diagnosis display | |
Parking device | 4 color indictor show failure A,broken warp: 6 row drop pin; B,cut weft: double weft feeder C,selvage: near switch D,catch weft: sensor |
CNC Workshop
The company is equipped with advanced CNC equipment, high-precision importedprocessing center, and adopts information management methods to achieve independentprecision machining of precision parts of key parts of the loom. The processing accuracyof key parts and components reaches 0.01mm, greatly improving the whole machine Stabilityand startup efficiency.
Assembly shop
The company adopts the whole machine assembly line, through strict quality management,finely differentiates the assembly process flow, uses special tools to fix the torque to fasten the connectors,and optimizes the quality control of the product through the technology of the entire assembly line.Cost-effectiveness and quality have strict requirements, ensuring the quality of the whole organization.
Quality Control Workshop
The use of advanced inspection and testing equipment to ensure the pass rate of productionproducts in each process, strictly control the quality fluctuations, so as to ensure the product qualityof the whole machine. Improve product production process through inspection,reduce quality cost and enhance product comprehensive competitiveness
